Antena ubiquiti con qmp.

IP: 172.30.22.1
root/13f

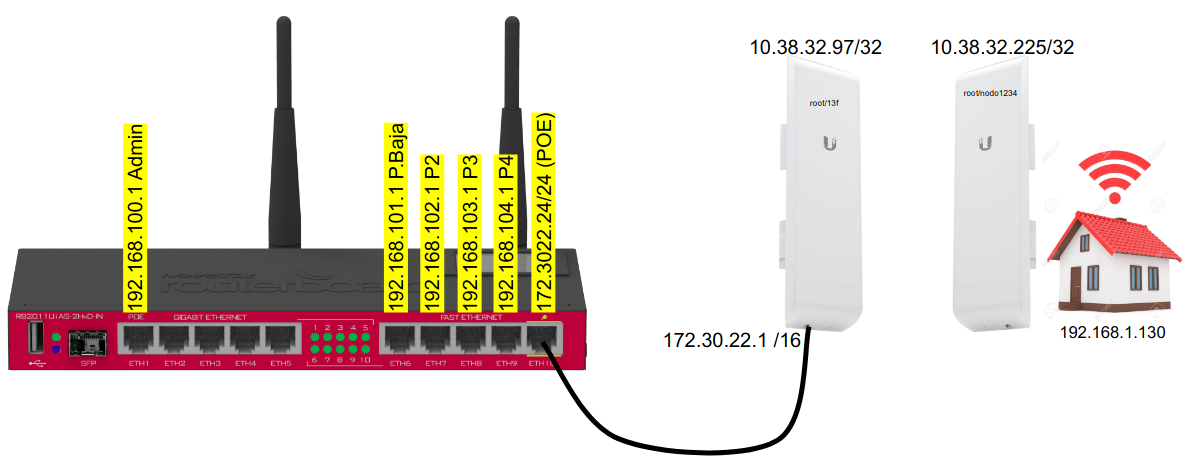

Routerboard Mikrotik RB2011UiAS-2HnD-IN

usuario: admin
Contraseña: <vacio>

Solo hay que añadir las IPs que querramos, decir que la puerta de enlace es nuestra salida a internet y enmascarar todas las ips con la ip que conecta a la salida a internet:

/ip address
add address=192.168.100.1/24 interface=ether1 network=192.168.100.0
add address=192.168.101.1/24 interface=ether6 network=192.168.101.0
add address=192.168.102.1/24 interface=ether7 network=192.168.102.0
add address=192.168.103.1/24 interface=ether8 network=192.168.103.0
add address=192.168.104.1/24 interface=ether9 network=192.168.104.0
add address=172.30.22.24/24 interface=ether10 network=172.30.22.0

/ip route
add distance=1 gateway=172.30.22.1

/ip firewall nat
add action=masquerade chain=srcnat out-interface=ether10

Hacemos un Bridge entre WLAN y ETH1 para administrar:

/interface bridge
add name=bridge_admin

/interface wireless security-profiles
add authentication-types=wpa-psk,wpa2-psk eap-methods="" management-protection=allowed mode=dynamic-keys name=EKO supplicant-identity="" wpa-pre-shared-key=ekoekoeko \
    wpa2-pre-shared-key=ekoekoeko

/interface wireless
set [ find default-name=wlan1 ] disabled=no mode=ap-bridge security-profile=EKO

/ip pool
add name=dhcp_pool1 ranges=192.168.100.100-192.168.100.254

/ip dhcp-server
add address-pool=dhcp_pool1 disabled=no interface=bridge_admin name=dhcp1

/interface bridge port
add bridge=bridge_admin interface=ether1
add bridge=bridge_admin interface=wlan1

192.168.112.1	RB Recesvinto
10.38.28.1	Omnitik Recesvinto
10.38.28.2	Antena Recesvinto
10.38.28.9	Antena EKO
10.38.28.10	Omnitik EKO (172.20.0.6)
10.38.28.14	RB EKO (vpn=192.168.112.2
